OAuth Scopes vs RBAC: Key Differences

OAuth scopes and RBAC (Role-Based Access Control) are two methods for managing access control, but they serve different purposes and operate in distinct ways.

• OAuth Scopes: These are permission strings tied to access tokens, defining what an app can do with a user's data. They're temporary, fine-grained, and ideal for external API integrations requiring specific, short-term permissions.
• RBAC: This method assigns permissions based on user roles, grouping actions by job functions. It's static, broader, and best for internal systems with long-term access needs.

Quick Comparison:

Key Takeaway: Use OAuth scopes for API-level, temporary permissions and RBAC for managing internal, role-based access. Combine both for hybrid systems requiring precise control and stable user permissions.

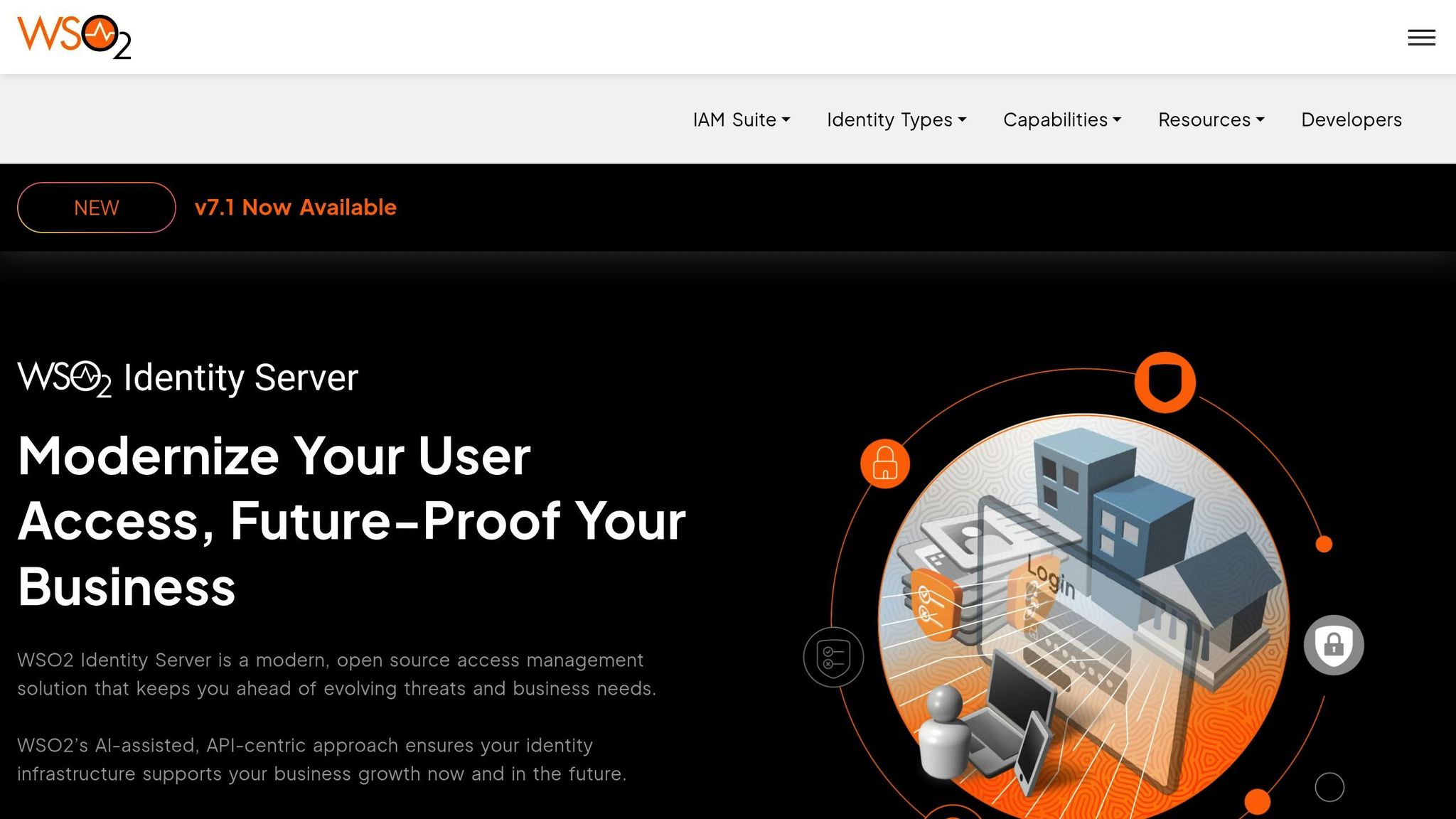

Role-based access control with OAuth2 scopes using WSO2 Identity Server #Identityin15

Core Differences Between OAuth Scopes and RBAC

OAuth scopes and RBAC both deal with access control, but they operate in fundamentally different ways. Understanding these differences is key to choosing the right approach for your needs.

Authorization vs Role Assignment

The way permissions are allocated is the most striking difference between OAuth scopes and RBAC. OAuth scopes focus on token-level permissions, defining what actions can be performed using an access token. For instance, a token with a read-only scope might only allow data retrieval operations^[3].

RBAC, on the other hand, assigns permissions based on user roles. Instead of limiting what a token can do, RBAC determines access based on the user's job function. For example, in a hospital, a "Nurse" role might include permissions to view patient records and update medication logs. These permissions are tied to the role itself, regardless of the application being used^[6].

In short, scopes apply to tokens, while RBAC is tied to users or groups. Scopes are issued at the time the token is created, whereas RBAC roles are typically set by administrators.

Access Control Granularity

Another key difference lies in how granular the access control is. OAuth scopes allow fine-grained, resource-level permissions. This means you can specify very particular access rights, like granting read access to a specific document or dataset^[5].

RBAC, by contrast, takes a broader approach. It groups related permissions into roles, which simplifies management and reduces administrative workload^[9]. However, this broader approach can lack the precision of OAuth scopes. For example, while RBAC can define a "Reader" role, OAuth scopes can go further by specifying access to individual resources.

This difference in granularity makes OAuth scopes more suitable for applications requiring detailed, resource-specific access, while RBAC works better for managing access at a higher level.

Temporary vs Static Permissions

The duration of permissions is another area where these two approaches diverge. OAuth scopes are often temporary, tied to the lifespan of the access token. Tokens are usually configured with short expiration times - sometimes as little as 15 minutes. This temporary nature provides flexibility and reduces the risk of long-term privilege escalation.

"Scopes represent an area of data and allowed operations on that data." – Gary Archer, Product Marketing Engineer at Curity ^[2]

RBAC permissions, however, are static. They remain in place until an administrator makes changes, which means they require regular reviews to ensure security.

The temporary nature of OAuth scopes offers a security advantage. For example, by setting a short time-to-live for high-privilege tokens, you limit the window of opportunity for misuse. In contrast, RBAC requires more effort to maintain security over time.

These differences highlight the strengths of each approach. OAuth scopes are ideal for API authorization where temporary, precise access is required. RBAC, on the other hand, is better suited for managing long-term user permissions in established systems^[2]. Your choice will depend on whether you need the adaptability of temporary, fine-grained control or the stability of role-based permissions.

Implementation Methods

Effectively using OAuth scopes and RBAC requires distinct approaches. Understanding how these systems function in practice can help you determine the best fit for your needs.

Setting Up OAuth Scopes

To implement OAuth scopes, start by defining clear boundaries for each scope on your authorization server. The resource server is responsible for validating these scopes and deciding how they are represented. When a client requests access, it includes the necessary scopes in the "scope" parameter ^[1]. Once the user approves, the authorization server issues a token containing the granted scopes ^[1]. Your API then verifies the token's scopes to perform authorization checks, returning a 403 Forbidden response if the token lacks the required permissions ^[2].

For instance, APIs often use specific scope strings to clarify permissions, such as https://graph.microsoft.com/Calendars.Read for calendar access or https://graph.microsoft.com/Mail.Send for sending emails ^[10].

Permissions can be structured hierarchically. Here's an example for an e-commerce platform:

To enforce scopes, you can use custom VerifyAccessToken policies ^[4]. These policies specify which scopes are acceptable, ensuring that only requests with the proper authorization are processed ^[4].

Once OAuth scopes are in place, you can move on to setting up RBAC for broader role-based access control.

Implementing RBAC Policies

RBAC begins with auditing your systems, defining roles, mapping permissions, and integrating necessary controls ^[8]. A healthcare organization offers a clear example of RBAC in action: doctors can view and edit patient records, while front desk staff are limited to viewing records and scheduling appointments ^[8].

Key steps in RBAC implementation include:

• Evaluating your current systems and processes.
• Grouping users into roles based on shared access needs.
• Mapping these roles to resources while adhering to the principle of least privilege ^[7].

Be cautious about creating too many roles, as this can complicate management ^[7]. Here's an example of RBAC in a database management context:

RBAC can be applied at various levels, such as query restrictions, interface controls, or even UI components that adapt based on the user's role ^[11]. Regularly monitoring and auditing your RBAC setup ensures it stays effective as your organization grows and changes ^[11].

With roles and permissions defined, OAuth scopes can then be integrated to enhance access control.

Using OAuth Scopes and RBAC Together

Combining OAuth scopes and RBAC creates a flexible and layered approach to managing access. OAuth scopes provide fine-grained token permissions, while RBAC offers broader role-based controls. Together, they form a hybrid model that leverages the strengths of both systems. For example, OAuth scopes can align with RBAC roles to define what applications can access ^[12].

A real-world example of this integration is the Confluent Platform, which validates JWT tokens and then authorizes clients using RBAC based on the principal extracted from the token ^[13]. This two-layered model ensures both token-level and user-level access are validated.

To implement this hybrid approach, map roles to OAuth scopes. For instance, assign read-only scopes to a "Data Analyst" role and read-write scopes to a "Data Administrator" role ^[12]. Regularly reviewing roles and scopes helps maintain security and ensures your access control adapts to organizational changes ^[12].

This combined method offers the precision of OAuth scopes alongside the administrative ease of RBAC, making it a strong solution for complex environments requiring both API-level and user-level controls.

Security Considerations

Both OAuth scopes and RBAC come with their own security challenges. Understanding these vulnerabilities is key to building stronger access control systems and defending against common threats.

OAuth Scope Security Risks

OAuth 2.0 is widely used to manage user permissions online ^[15]. However, implementation errors can introduce serious vulnerabilities. Issues like weak redirect URI checks, missing CSRF protection, and improper scope validation can open the door for attackers to bypass authentication and gain access to sensitive data ^[14]. Sensitive information transmitted through browsers is also at risk of interception or man-in-the-middle attacks.

Some common OAuth vulnerabilities include:

• Poor redirect URI validation
• CSRF attacks due to missing state parameters
• Improper scope validation
• Reusability of access tokens
• Host header injection
• Token leakage from insecure storage or transmission ^[17]

The security of an OAuth setup heavily depends on proper configuration and rigorous input validation ^[14].

On the other hand, RBAC introduces its own set of challenges, especially due to its static nature.

RBAC Security Challenges

RBAC's static structure can lead to security risks if roles are outdated or improperly assigned. Once defined, roles don't automatically adapt to evolving needs, which can be problematic in dynamic business environments ^[18]. Regular role management is essential to ensure permissions align with current application requirements. For example, if a user's role changes but their token (like a JWT) still reflects old permissions, this can create security gaps ^[5].

Both OAuth and RBAC require tailored best practices to minimize these risks.

Security Best Practices

To address these risks, precise configuration and regular reviews are essential.

For OAuth:

• Validate redirect URIs against an approved whitelist on the server side. Ensure these URIs use HTTPS, are absolute, and avoid fragment identifiers like # ^[15][17].
• Use a unique state parameter for every authorization request to prevent CSRF attacks. Validate this parameter upon callback ^[15][17].
• Enforce strict scope validation on resource servers. If an access token lacks the required scope, return a 403 Forbidden response ^[2].
• Encrypt access and refresh tokens in the database. If using cookies, mark them as HTTP-only and Secure ^[15].
• Regularly update your OAuth implementation to address new threats ^[15].

When working with third-party vendors, audit the reputation of OAuth providers and monitor non-human access to maintain visibility into interactions between your systems and external services ^[16].

For RBAC:

• Clearly define roles and conduct regular audits to remove outdated permissions.
• Use Policy as Code methods to manage authorization policies in a transparent, version-controlled way ^[19].

Combining OAuth 2.0 with RBAC can create a powerful security framework. OAuth determines who can access a service, while RBAC ensures users have the right permissions. Together, they leverage each system's strengths while addressing their weaknesses, emphasizing the importance of proper implementation in modern application security ^[20].

Use Cases and Applications

When deciding between OAuth scopes and Role-Based Access Control (RBAC), the choice often hinges on your application’s needs and how your organization is structured. Each method shines in specific scenarios, and understanding these patterns can guide you toward the best access control strategy.

OAuth Scopes in API Applications

OAuth scopes are particularly suited for scenarios involving third-party integrations and user consent workflows. They work well when a third-party app needs access to a user’s data or functionality, while the platform hosting the data retains control over what the third party can do ^[3].

Take Google Calendar as an example - it allows third-party apps to create events without granting full access to the user’s calendar ^[21]. Similarly, photo-sharing platforms typically define OAuth scopes like photos.read, photos.upload, and photos.delete, enabling users to grant specific permissions to external apps. For instance, a photo-editing app might only need access to read and modify photos, while users can deny it the ability to delete them.

OAuth scopes are most effective when third-party developers define them, and end-users grant permissions through explicit consent ^[3]. These permissions are often temporary, with token lifetimes and optional refresh mechanisms, making OAuth an excellent choice for delegated access scenarios. However, when the application and API belong to the same organization, OAuth scopes hold less relevance, as users have already provided implicit or explicit permission ^[3].

RBAC in Enterprise Systems

RBAC is a better fit for enterprise environments where access is determined by roles, organizational hierarchy, and departmental responsibilities ^[22]. Internal systems with relatively fixed roles benefit greatly from this model.

For instance, Nakisa uses RBAC in its Lease Accounting software, assigning permissions for managing lease agreements and financial records. Their system ensures proper data scoping through User Profiles within the Financial Organization Structure, safeguarding data integrity and confidentiality ^[23].

Another example is TrueFoundry’s LLM Gateway, which leverages RBAC to secure access in AI infrastructure. By combining API authentication with role-based authorization, they ensure only authorized users and services can interact with their generative AI models, while maintaining governance over which models are accessible ^[24].

RBAC also addresses insider threats, which account for 35% of data breaches. By enforcing the principle of least privilege, RBAC minimizes the potential damage caused by internal actors ^[23].

"RBAC restricts user access to the minimum levels required to perform a job. This helps organizations enforce security best practices like the principle of least privilege (PoLP), which diminishes the risk of data breaches and data leakage." – StrongDM ^[7]

Additionally, RBAC helps organizations meet compliance requirements for regulations like GDPR and SOC 1 and 2 by ensuring proper access controls ^[23]. Platforms like DreamFactory incorporate these enterprise-grade controls to simplify access management.

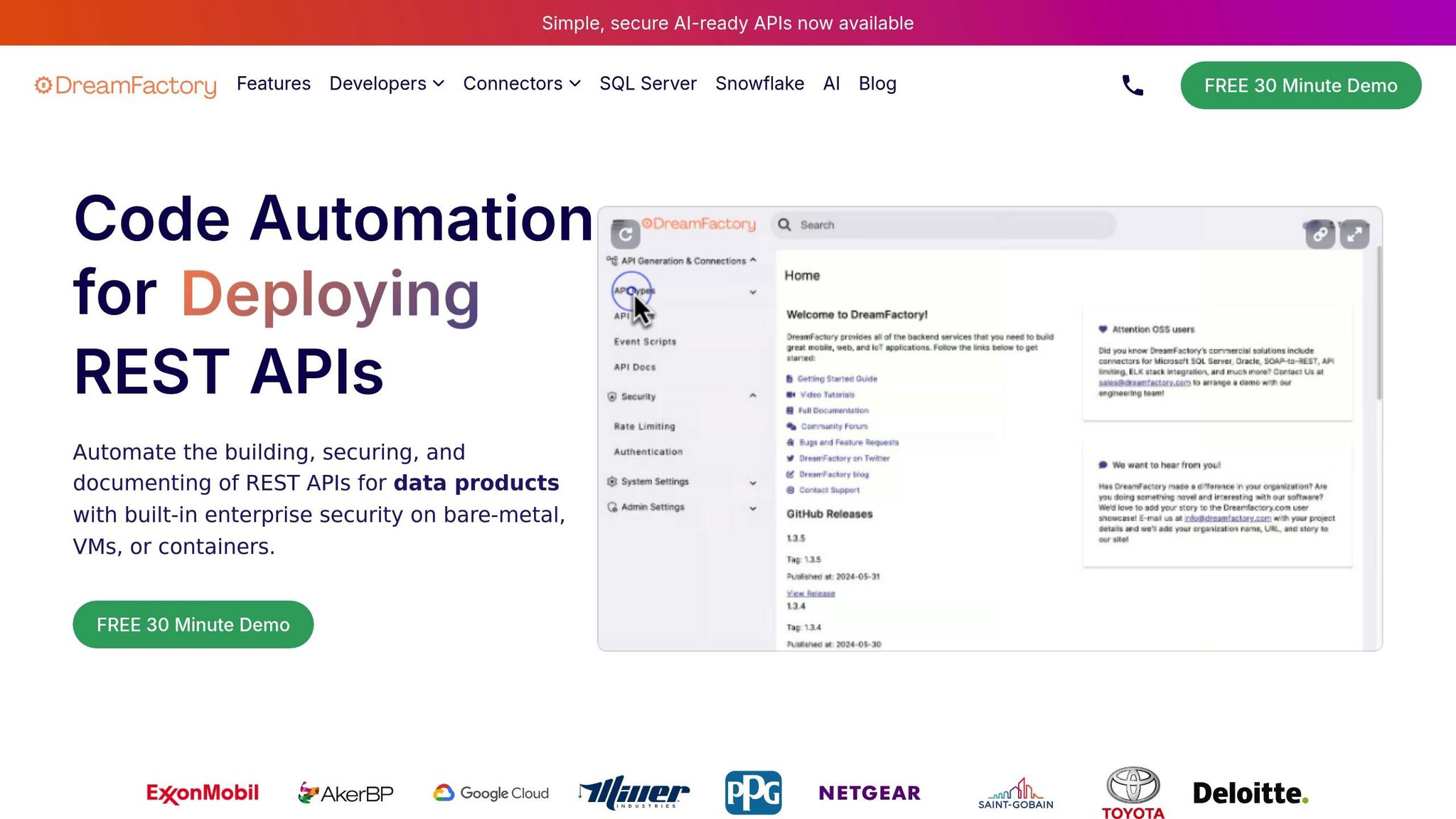

DreamFactory's Access Control Features

DreamFactory combines the strengths of both OAuth scopes and RBAC, offering flexible access control that doesn’t tie you to a single method.

The platform includes robust RBAC capabilities alongside OAuth support and API key management. When you generate REST APIs from databases using DreamFactory, the system automatically adds a security layer that enforces both role-based permissions and OAuth scope restrictions.

With DreamFactory’s RBAC features, administrators can define roles reflecting their organizational structure and assign detailed permissions for database operations, API endpoints, and specific data fields. At the same time, its OAuth integration allows secure third-party access with user-controlled scope limitations.

This dual approach is particularly valuable for hybrid use cases. For example, an organization might use RBAC to manage internal employee access to customer data while leveraging OAuth scopes for external partner integrations. When RBAC is activated alongside token dialect for an API, the permissions assigned to the user and requested by the application are included in the scope attribute of the issued Access Token ^[25].

DreamFactory supports over 20 connectors, including Snowflake, SQL Server, and MongoDB, ensuring consistent access control across various data sources. Whether you’re securing a simple database API or managing a complex multi-tenant system, DreamFactory adapts to your security needs while maintaining compliance with GDPR and HIPAA standards.

This dual model provides a balance of token-level granularity and robust role-based management, aligning with the broader strategies discussed earlier.

Choosing the Right Access Control Method

In the previous sections, we explored the mechanics and use cases of OAuth scopes and RBAC. Now, let's focus on how to choose and implement the right access control method for your specific needs. Your decision will depend on factors like security requirements, organizational structure, and the overall design of your application. Understanding when and where each method shines will help you create a system that's both secure and manageable.

Key Takeaways

The core distinction between OAuth scopes and RBAC lies in what they control. OAuth scopes determine what applications can do with user data, while RBAC defines what users themselves can do. Because OAuth scopes are token-based and often require explicit user consent, they are ideal for managing permissions in third-party integrations. On the other hand, RBAC is role-based and works best for internal systems, where access is tied to job roles or departments.

Here’s a quick breakdown:

• Use OAuth scopes for external APIs and temporary permissions. For instance, a photo-editing app requesting access to read and modify images - but not delete them - is a perfect use case for scopes. Scopes also support expiration and refresh mechanisms (as discussed earlier).
• Use RBAC for internal systems where access is tied to organizational roles, such as granting permissions based on job titles or departments. RBAC provides a stable, long-term framework for managing access until an admin updates it.
• Consider hybrid models if your system serves both internal users and external applications, combining the strengths of both approaches.

Granularity is another key factor. OAuth scopes allow for fine-grained control over specific API endpoints or data types. However, creating too many scopes can lead to "scope explosion" - a situation where managing scopes becomes overly complex^[2]. RBAC, by contrast, typically handles broader access levels, making it simpler to manage but less precise.

The way these methods enforce permissions also differs. OAuth scopes are enforced directly by APIs, often returning a "403 Forbidden" response when a token lacks the necessary permissions. RBAC enforcement, however, depends on how role checks are integrated into your system.

With these differences in mind, you're ready to move on to implementation.

Implementation Next Steps

1. Catalog Your APIs and Define Usage Needs
Start by cataloging your APIs and consulting with external developers to ensure your scope definitions align with actual usage requirements.

2. Implement OAuth Scopes Thoughtfully
Begin with a small, well-defined set of scopes rather than trying to cover every possible permission upfront. This approach makes it easier to expand later without breaking existing integrations. Use clear, intuitive names for your scopes so end users can easily understand what they’re granting access to. Before rolling out publicly, beta test your scope definitions with both external and internal developers to validate your approach.

3. Build an RBAC Framework
Map out your organizational structure and identify existing roles. Determine the permissions each role needs and start with broad categories that can be refined over time. This allows you to adapt based on real-world usage patterns and evolving security requirements.

4. Document Everything
For OAuth scopes, create a detailed list of available scopes with clear explanations of the data or functionality each one provides. For RBAC, document role hierarchies, permission inheritance, and the process for requesting changes to roles. Comprehensive documentation makes it easier for teams to implement and maintain these systems.

5. Monitor and Adjust
Continuously track how both OAuth scopes and RBAC roles are being used. Monitor which scopes are most frequently requested and which roles are updated most often. This data will help you identify potential security gaps and fine-tune your access control strategy.

6. Explore Flexible Platforms
Platforms like DreamFactory support both OAuth and RBAC, giving you the flexibility to implement either - or even a combination of both - depending on your needs.

Finally, keep in mind that once OAuth scopes are released and integrated into third-party applications, they can be difficult to change. Similarly, RBAC structures often become deeply embedded in organizational workflows, making major updates disruptive. Thoughtful planning and careful design are essential for long-term success.

FAQs
