Build Custom, AI-Ready API Endpoints Without Writing Backend Code

Auto-generated APIs changed how fast teams ship. Point DreamFactory at a database and you get a complete REST API in seconds: every table, full CRUD, live documentation, role-based security. For thousands of teams, that is the whole job.

But auto-generated APIs mirror your schema. Your applications, and increasingly your AI agents, want something more deliberate: clean paths, shaped responses, and endpoints that match how the consumer thinks rather than how the database is laid out.

That gap is what API Builder closes. It is DreamFactory's visual layer for designing custom API endpoints on top of the services you already have. No backend code. No server-side scripts to maintain.

Prefer to see it? Watch API Builder go from database to published endpoint in the demo video:

What "AI-ready" actually means

When the consumer of your API was a frontend developer, a generated CRUD API was fine. Developers read docs, chain calls, and reshape responses in application code.

AI agents work differently. An agent gets a set of tools, each with a name, a description, and a schema, and it has to choose correctly among them. That changes what a good API looks like:

Purpose-built beats general. An agent handed raw table access to customers, orders, and order_items has to plan a three-step join on every question. An agent handed one tool called get_montana_customers_with_orders calls it once and gets it right. Fewer, sharper tools mean fewer wrong turns.

Shaped responses beat raw rows. Every column you return is context the model has to carry and can misread. An endpoint that returns exactly the fields the task needs, with names a human would choose, is cheaper to run and harder to misuse.

Least privilege beats trust. Agents should never hold database credentials. They should hold an API key scoped to specific endpoints and verbs, with every call logged. If the agent goes sideways, you revoke a key, not rotate a database password.

Custom endpoints are not a nice-to-have in an agent architecture. They are the tool layer.

Designing an endpoint in API Builder

Here is the shape of it, using a retail database as the example.

Say your sales team keeps asking the same question: which Montana customers do we have, and what has each of them ordered? The generated API can answer it, but every caller has to know the filter syntax, the related-table parameter, and the raw column names. Every caller does it slightly differently, and every one of them sees more of the schema than they need.

In API Builder you define the endpoint you actually want:

GET /mt_customers_with_orders

Behind it is an execution plan with a single declared service request against the retail MySQL service, and that one step carries the whole contract:

• Field selection. Only name, email, city, and state leave the database. Internal columns never appear in the response.
• A baked-in filter. state = 'MT' is part of the endpoint definition, not the request. Consumers cannot widen it.
• Related data in one call. Each customer arrives with their orders nested, using the table relationship DreamFactory already discovered from the schema. No second round trip, no client-side join.
• Renames. email becomes customer_email and the orders relation becomes customer_orders, so the response reads like a contract instead of a schema dump.

The response is exactly what you designed:

{
  "resource": [
    {
      "first_name": "Sarah",
      "last_name": "Chen",
      "customer_email": "sarah.chen@example.com",
      "city": "Bozeman",
      "state": "MT",
      "customer_orders": [
        { "status": "shipped", "total": 123.50, "ordered_at": "2026-07-02" }
      ]
    }
  ]
}

A second endpoint on the same API, GET /orders_with_items, does the same for order data: orders with their line items nested, trimmed to the fields a consumer needs. Status, total, order date, nothing else. And when a consumer does need a point lookup, endpoint paths can carry parameters, like /customers/{id}/orders.

Because the plan is declarative, it is readable in a way scripts never are. A reviewer can look at an endpoint definition and see every service it touches, every filter it bakes in, and every field it exposes. That matters when the consumer is an autonomous system and someone in security asks what, exactly, the agent can reach.

Test before you publish

API Builder includes a test panel that runs your endpoint with real inputs before it goes live. It resolves the execution plan step by step and shows a per-step trace: which service was called, what came back, where a failure happened. Dry-run mode resolves the plan without dispatching to backing services at all, so you can validate structure safely.

When it looks right, publish. The endpoint becomes a live DreamFactory service like any other.

One endpoint, multiple databases

Execution plans are not limited to one backing service. A single endpoint can pull from your MySQL retail database, your Postgres analytics store, and your SQL Server line-of-business system, then merge and shape the results into one response.

For AI use cases this is the difference between an agent that can answer real questions and one that cannot. "Give me this customer's order history and their open support tickets" spans two systems. Without composition, that is two tools, two calls, and model-side merging. With it, that is one governed endpoint with one schema.

Security and documentation come standard

A published endpoint inherits everything the rest of your DreamFactory instance already has:

• Role-based access control, scoped to specific endpoints and HTTP verbs. A read-only reporting key physically cannot write.
• API key authentication, so every consumer, human or agent, is identifiable and revocable.
• Live OpenAPI documentation, generated from your endpoint definitions, ready for your team or your customers.
• Logging and auditability on every call.

You design the contract. The platform enforces it.

From endpoint to agent tool

This is where it comes together. DreamFactory speaks MCP, the open protocol AI assistants use to discover and call tools. An MCP server on your instance is bound to an application and its role, which means the tools an agent sees are exactly the endpoints that role permits. Nothing else exists as far as the agent is concerned.

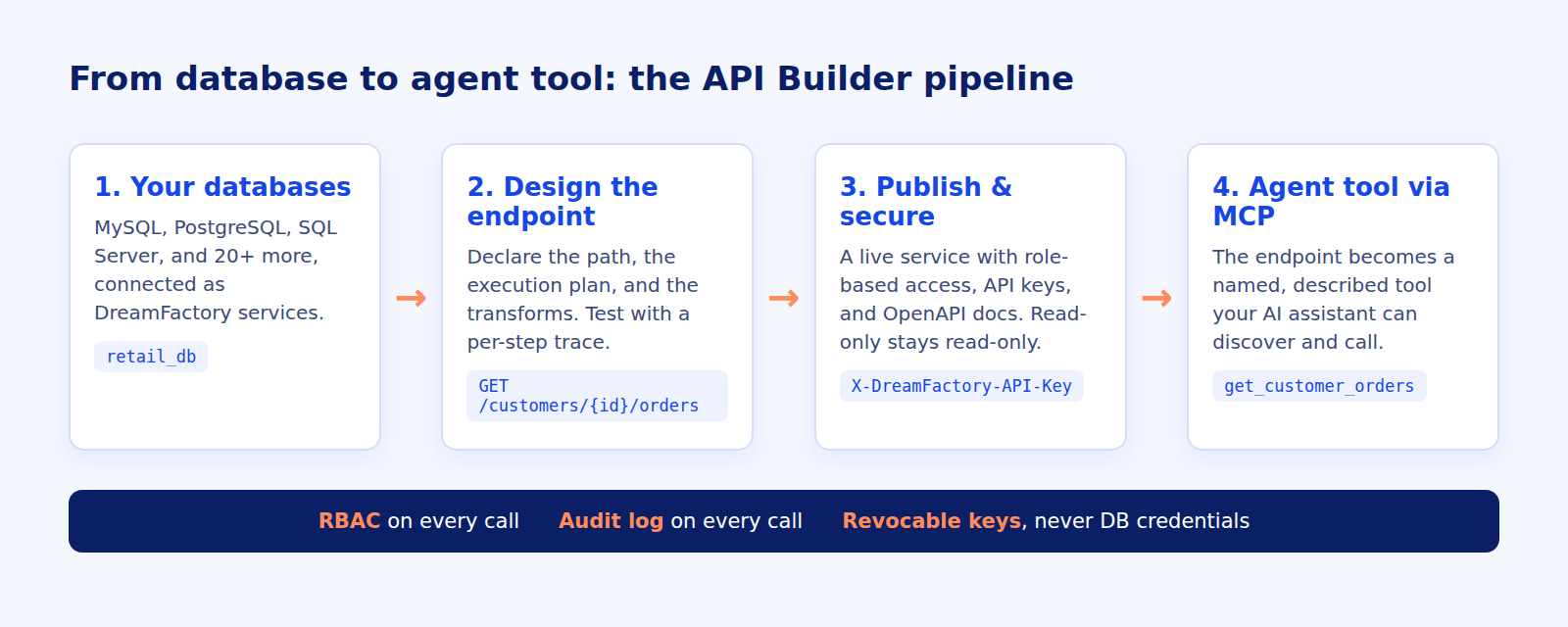

The pipeline reads like a supply chain for agent capability: design a purpose-built endpoint in API Builder, scope it with a role, expose it over MCP, and hand your agent a key. The agent gets a clean, well-described tool. You keep the credentials, the audit log, and the off switch.

The bottom line

Two years ago, "we need an API on this database" had one answer: generate it. That answer still stands, and DreamFactory still gives it to you in seconds.

But the consumers of your data are changing. Applications want contracts, not schemas. Agents want tools, not tables. API Builder lets you design both from the databases you already run, in minutes, with security and documentation built in, and without writing a line of backend code.

Your database. Your API contract. No code.

API Builder ships with DreamFactory 7.7. Watch the full demo on YouTube, or try it against your own database at dreamfactory.com.
